FAULTS_R_GEMS_pilot

Properties of FAULTS, Key Information to Produce Realistic Generic Earthquake Models and Hazard Simulations (Pilot, starting phase)

- I. Manighetti -

Earthquakes, the fault is in the faults…

Automated fault identification and mapping with deep learning (L. Mattéo PhD thesis, 2019) (left: raw optical drone image of a network of small natural faults in Arizona, faults as grey lines; right: automatic deep learning mapping faults as red lines) Automated fault identification and mapping with deep learning (L. Mattéo PhD thesis, 2019) (left: raw optical drone image of a network of small natural faults in Arizona, faults as grey lines; right: automatic deep learning mapping faults as red lines)

Academy 3 highlight

Large earthquakes are one of the most damaging and least predictable natural phenomena on Earth. Academy 3 encourages projects that might contribute to a better understanding of this natural hazard. To reach this objective, FAULTS_R_GEMS^PILOT fosters new collaborations in UCA among geologists, geophysicists, data science and image processing experts, and mathematicians.

The project

Tectonic faults are large “fracture planes” cutting through the Earth’s crust from the ground surface down to a few (1-10) kilometers depth (general case) or even more. At depth in the crust, faults cannot be observed directly and hence are difficult to analyze. By contrast, as their plane generally intersects the Earth surface, they form clear traces in the ground, generally of 1-1000 kilometers length, which can be observed on the field or from airborne and satellite sensors.

Faults are the Earth features that produce earthquakes; an earthquake is the sudden displacement along a fault of the two rock blocks it separates. Yet, surprisingly, although faults are the source of earthquakes, current earthquake models hardly consider them: the fault source is simplified as a 2D, planar, homogeneous surface with no thickness, embedded in an homogeneous, unfractured medium. This dramatically differs from reality since natural faults are non-planar, 3D zones embedded in intensely fractured rock volumes.

The Faults_R_Gems^Pilot project proposes that intimate relations exist between faults and earthquakes, which implies that earthquake modeling cannot be successful until it properly integrates fault properties. We have two objectives: firstly, identify and quantify the fault properties which most strongly impact the earthquake behavior; secondly, develop a new generation of earthquake models that integrate these fault properties.

During the 3 years of the Faults_R_Gems^Pilot project, we have worked on the first objective. Meanwhile, the second task has started in the framework of the larger project Faults_R_Gems since funded by the French National Agency ANR.

To address the first objective, we have 1) acquired large volumes of field, airborne and satellite imaging and topographic data documenting multiple natural fault zones of various scales and earthquake behaviors; 2) adapted deep learning tools to automate the identification and measure of the faults in the image and topographic data; 3) started the analysis of some of the fault properties in the measurements.

Among preliminary results, the new deep learning tools seem efficient at automatic fault identification in image data (Fig.1); scaling relations exist between important constitutive fault elements (such as fault length and thickness, Fig.2), proving the genetic and generic link between those elements. These scaling relations, key to understand the fault physics, will feed physical and mathematical fault models developed by our partners from LJAD laboratory (project DEFIDEF). Ultimately, these fault models will be integrated into the new generation of earthquake models we are developing.

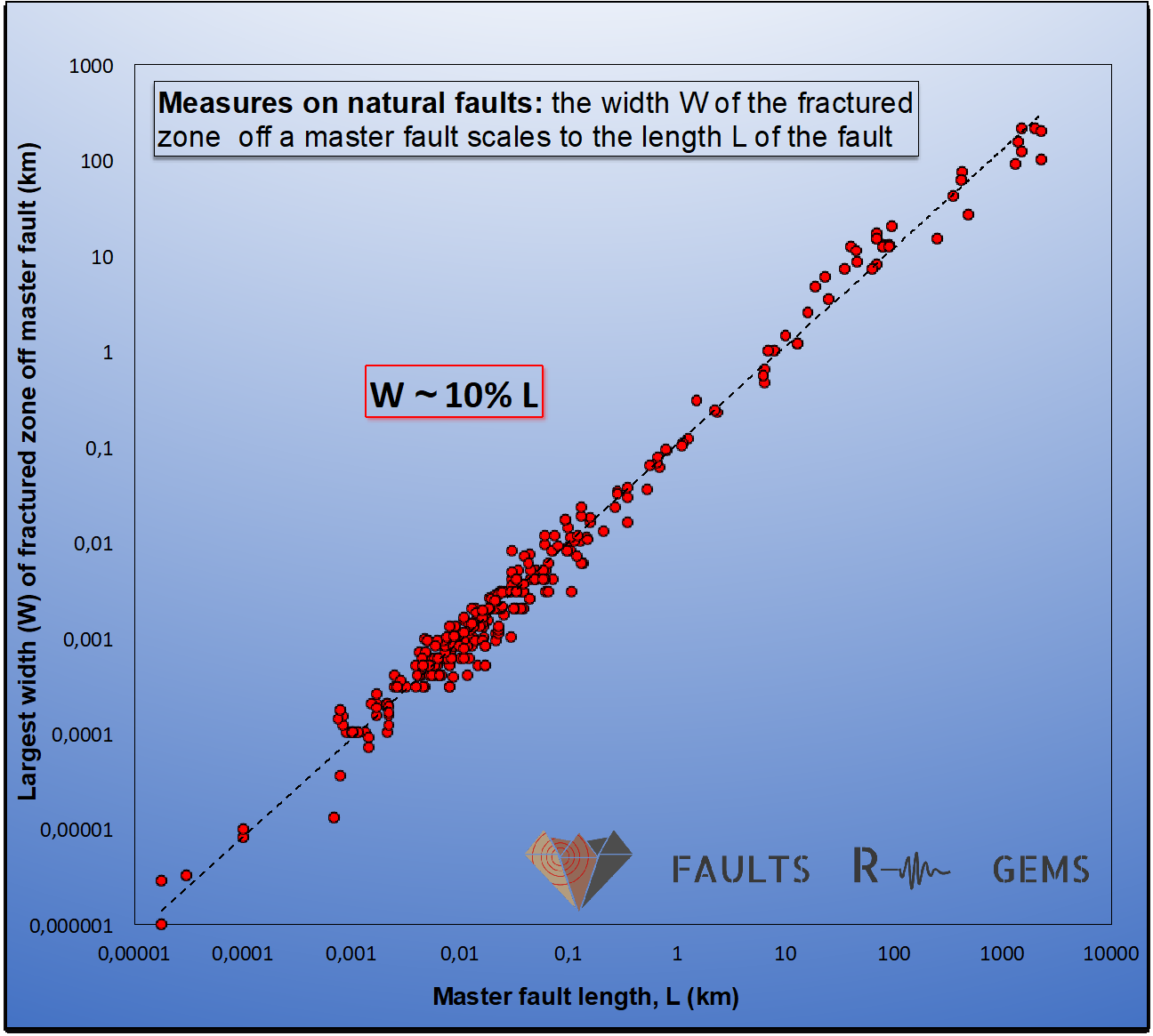

Scaling relation between fault length and across-fault width of fractured zone off the fault (data are measures on natural faults, T. Giampietro PhD thesis, 2019) Scaling relation between fault length and across-fault width of fractured zone off the fault (data are measures on natural faults, T. Giampietro PhD thesis, 2019)

The +

Deep learning tools are adapted for the first time to automate identification, mapping and measure of faults in remote sensing and airborne data. This is also the first time that actual generic fault properties will be integrated into earthquake models. This new approach, coupling faults and earthquakes intimately, should decrease discrepancies between model outputs and natural earthquake behaviors.

What’s next?

If the results we obtain in the next few years (Faults_R_Gems ANR project) confirm that fault properties are primarily generic, their integration should push forward generic earthquake models that could be run for the vast majority of faults and earthquakes worldwide. These new models might thus open a novel avenue in earthquake modeling and hazard assessment.
